DIP-DM series
DIP SWITCH SERIES
DIP-DM series
DIP switch FEATURE ‧Pitch 2.54mm ‧Piano Type , Long Key ‧1~10 , 12 positions APPLICATIONS ‧Digital drama processing, communication, remote control and anti-theft, automatic alarm system, air shower room, model train
Download
Inquiry
DIP-DM
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
額定值/Rating
25mA 24V
引腳間距/PIN Pitch
2.54mm
操作力/Operation Force
1000gf max
介電強度/Dielectric Strength
AC 500 V minute
絕緣電阻/Insulation Resistance
100 MΩ Mim 500V DC
接觸電阻/Contact Resistance
50MΩ
工作溫度/Operating Temperature
-40° ~ +85°
壽命
/ Life
2,000 Operations

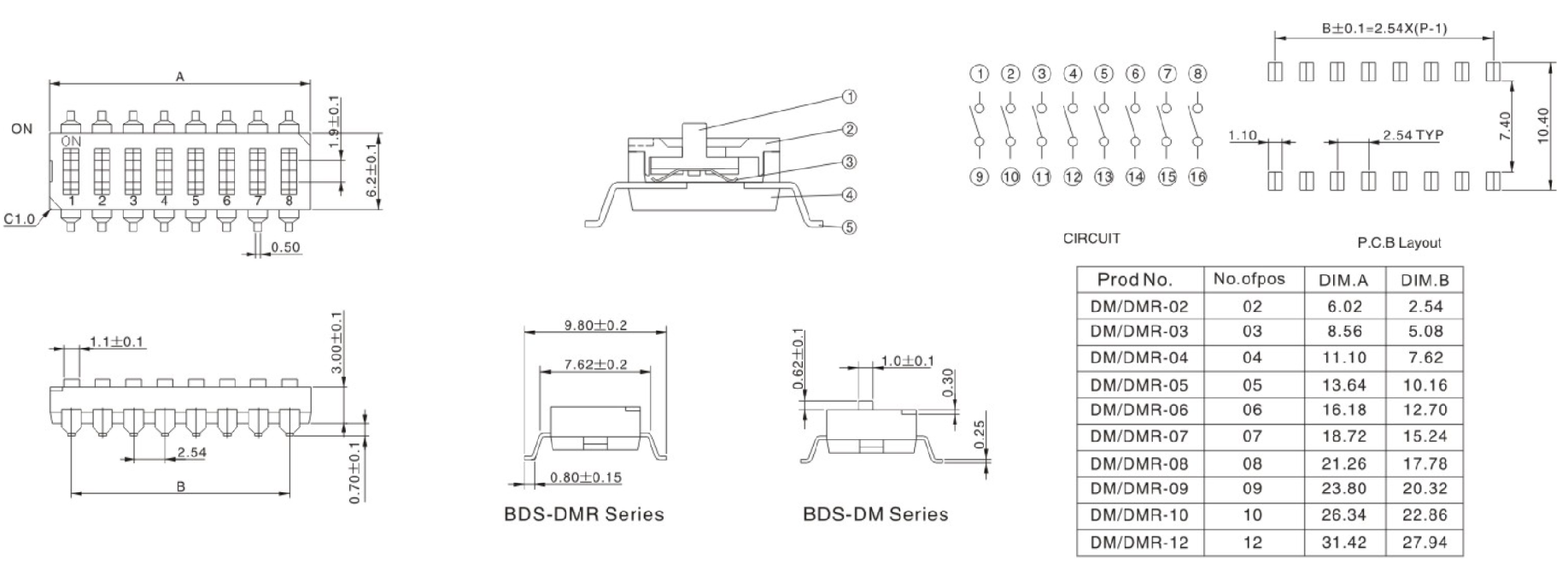

DIMENSIONS
Unit:mm
Model
Dimensions
DIP-DM
