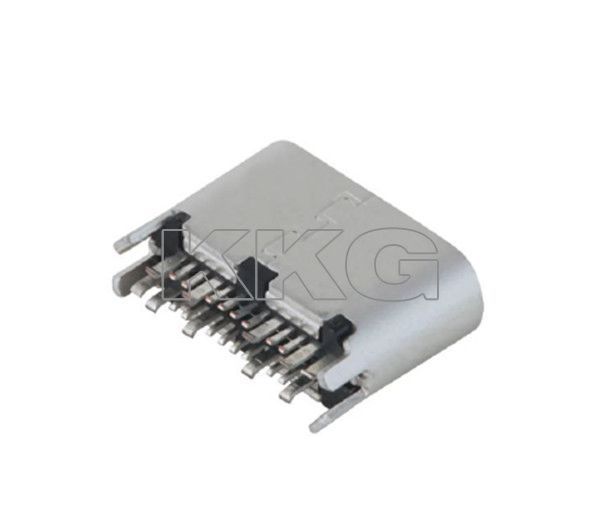

TYPE-CF-24P-PT0.8-S1-L5.7
USB 3.1 TYPE-C
TYPE-CF-24P-PT0.8-S1-L5.7
TYPE-CF-24P-PT0.8-S1-L5.7 FEATURE ‧ 8.94mm*5.70mm ‧ 180 degrees DIP ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
额定电流/Current Rating
5.0A MAX
额定电压/Voltage Rating
100VAC
接触电阻/Contact Resistance
40 millionhm max
尺寸/Dimension
8.94mm*5.70mm
温度/temperature range
-30℃~85℃
绝缘电阻/Insulation Resistance
100 megohms min

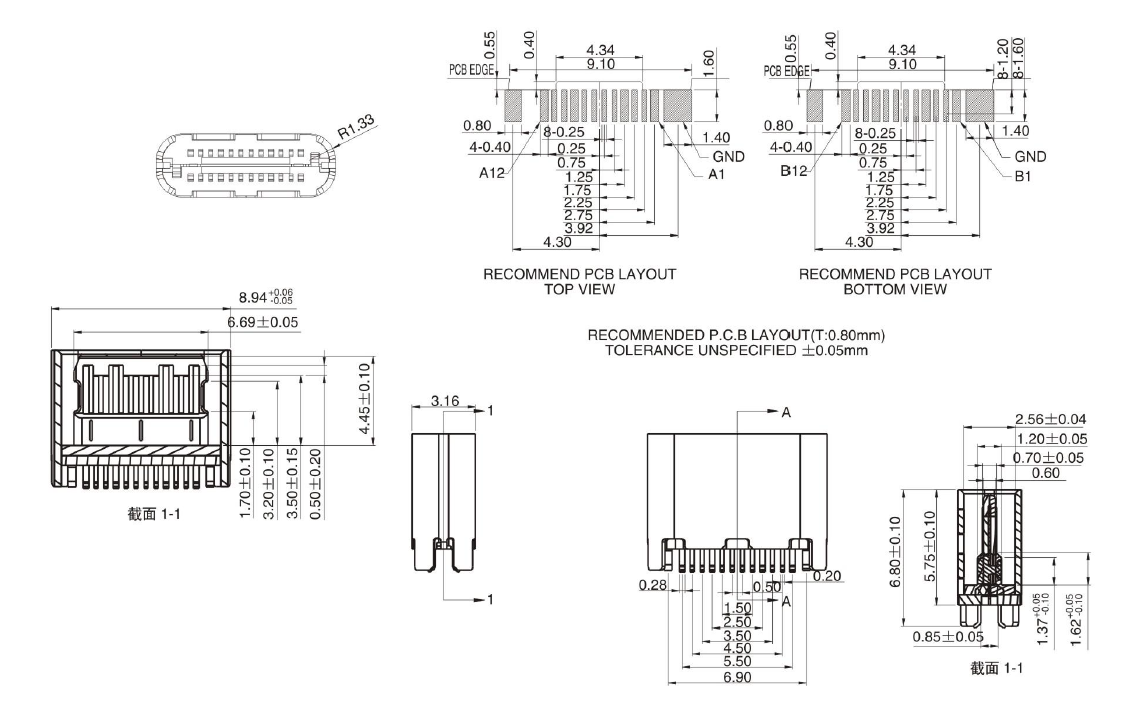

DIMENSIONS
Unit:mm
Model
Dimensions
TYPE-CF-24P-PT0.8-S1-L5.7
Unit:mm
