MULTI-FUNCTION SWITCH 多功能開關

TM-3201 series
TM-3201 series

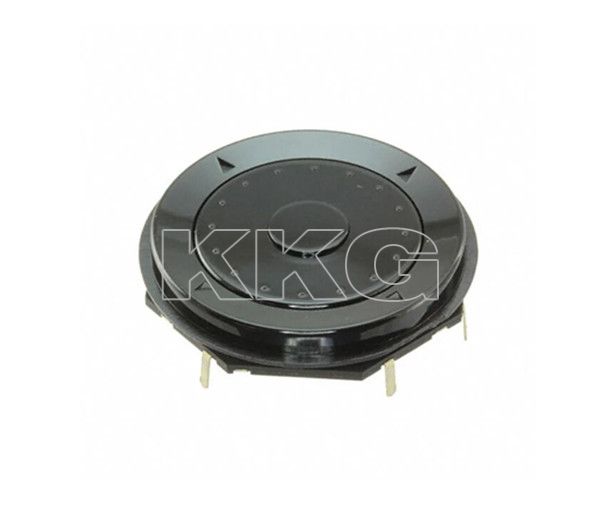

Multi-function rotary switch

TM-3201 series

Rotary switch FEATURE ‧ Φ32.00mm ‧ 4 directions + rotation + middle pressing ‧ DIP installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
操作力/Operating force300 gf
工作頻率(電氣)/Operating frequency(electrical)Push-120/mim
接觸電阻/Contact resistance300m Ω
使用壽命(電氣)/Service life(electrical)1000000
工作電流/Working current1mA 10VDC

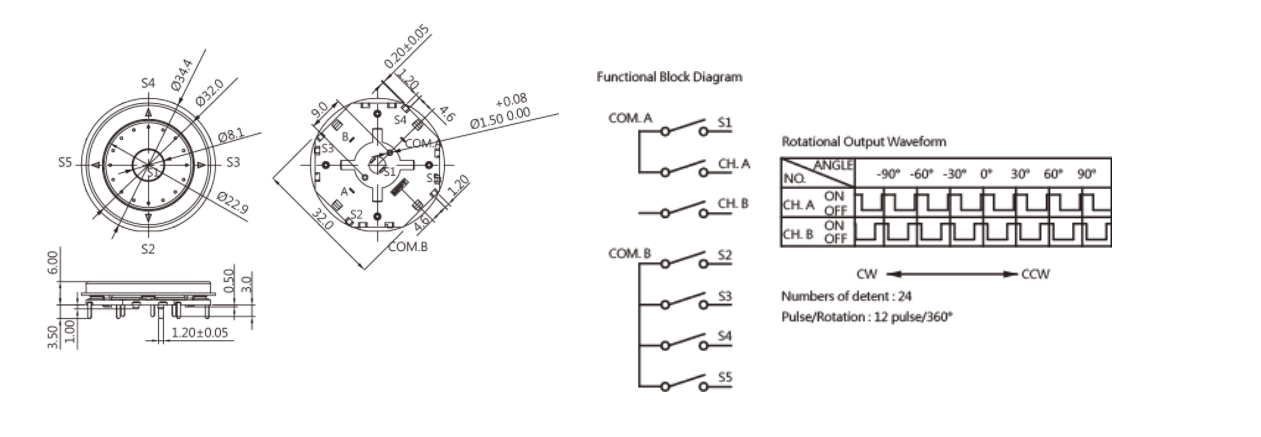

DIMENSIONS

Unit:mm

ModelDimensions

TM-3201TM-3201 series

TM-3201 series
