MICRO SWITCH

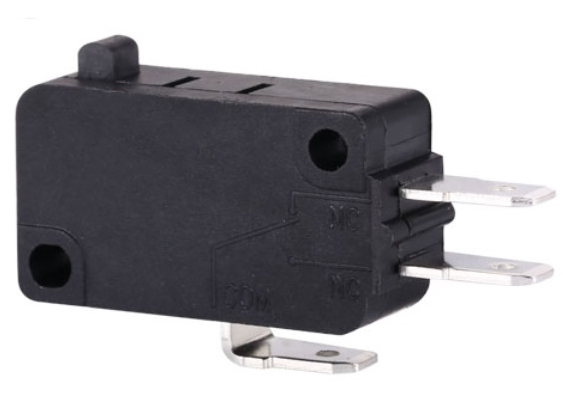

MS-2799
16A DIP micro switch
MS-2799
Horizontal DIP / micro switch FEATURE ‧ 27.90mm*10.30mm ‧ Horizontal DIP APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-25°C ~ +80°C
操作力/Operating force
80g
尺寸/Dimension
27.90mm*10.30mm
機械壽命/Mechanical Life
100,000 Cycles
接觸電阻/Contact Resistance
50MΩ
絕緣電阻/Insulation resistance
100 MΩ Mim. 500V DC
承受電壓/Withatand Voltage
AC 1,000 V 1 Minute

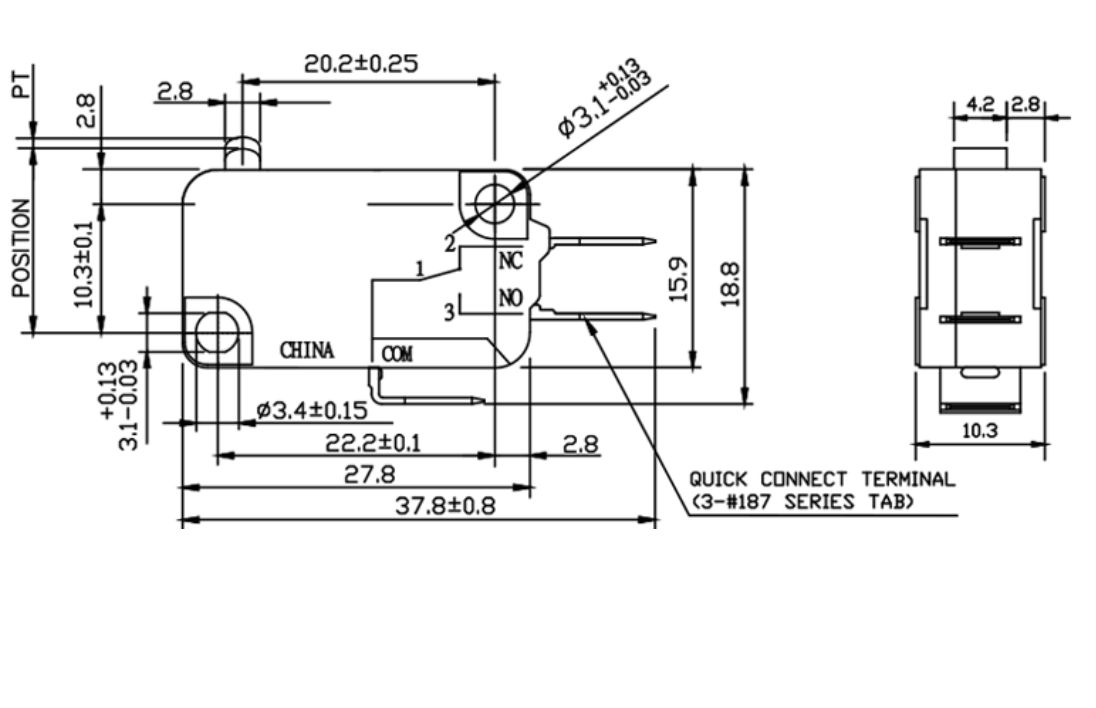

DIMENSIONS
Model
Dimensions
MS-2799
